Sholes visible: escapement

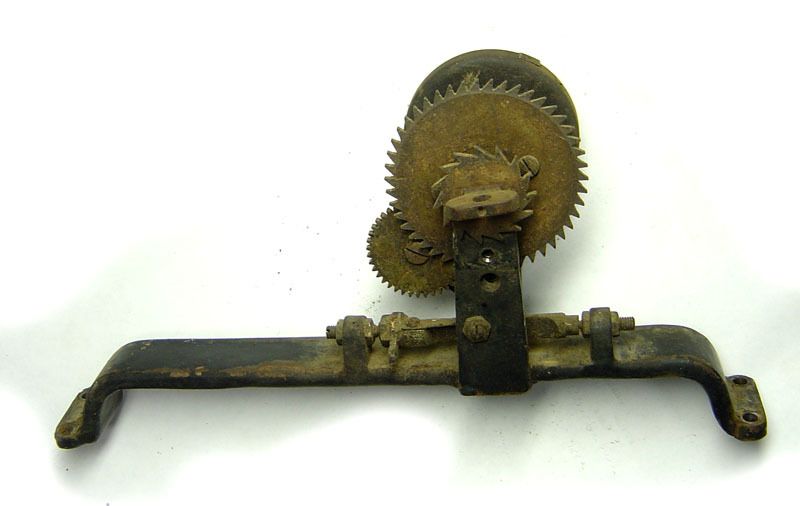

I'm coming to appreciate some of the clever design features of the Sholes Visible. The escapement / mainspring unit, for example, can be eased out of the typewriter just by removing four screws.

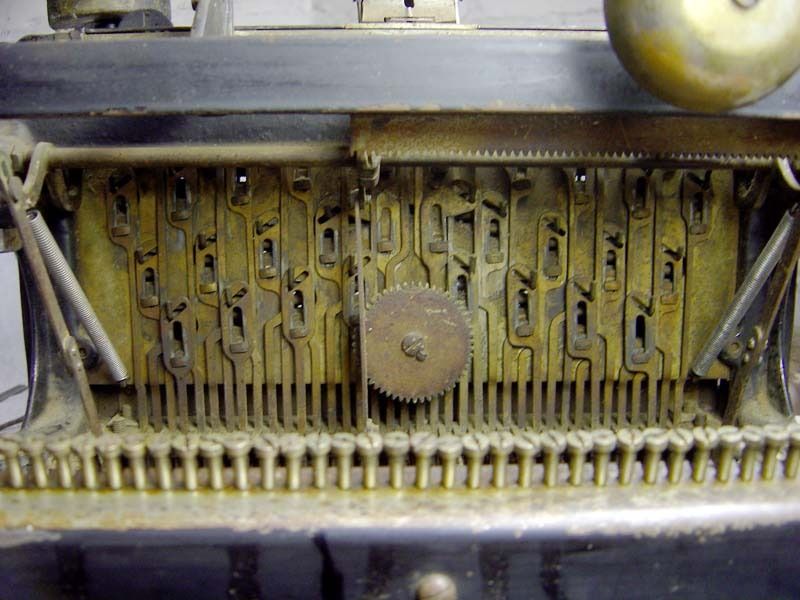

With the escapement/mainspring unit out, you can get an unobstructed view of the magic mechanism.


This will be my last post about the Sholes Visible for at least 10 days, as I'm on vacation in California. (I left last Friday -- my posts since then have been showing you photos taken in the basement typewriter room in Cincinnati before I left.) A message from California will be coming online in a couple of days.
